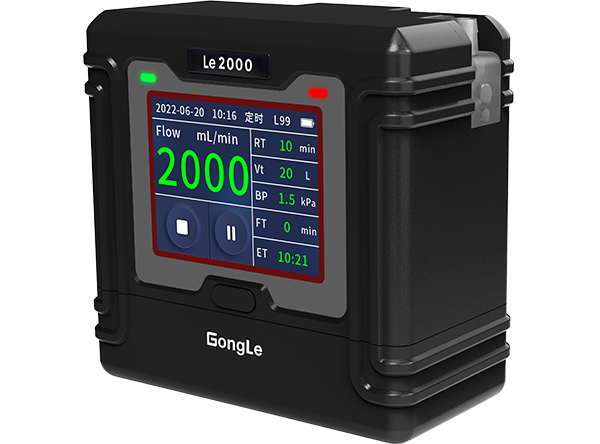

The Le2000 constant flow air Sampling Pumps is a portable sampling device with a flow range of 100-1600 milliliters per minute, which complies with the provisions of JJF1404-2013 "Outline for Evaluation of Atmospheric Sampling Pumps Types" and JJG956-2013 "Verification Regulations for Atmospheric Sampling Pumpss".
The Le2000 constant current air Sampling Pumps adopts the advancedclosed-loop intelligent control system LeAiOS, achieving precise and stable constant current sampling.
This device is equipped with a color touch screen and excellent UI human-computer interaction design, which can achieve various sampling modes such as manual/timing/constant volume/programming. At the same time, it can also monitor flow, sampling volume, temperature, and pressure indicators in real-time, and will automatically alarm in case of errors.
In addition, it can calculate and record corresponding average values and STP standard volume data.
It has a compact body, long endurance, and can withstand a back pressure of up to 35kPa, meeting the requirements of various sampling specifications. It is suitable for various air sampling occasions such as personal, fixed point, and laboratory applications.
Technical Specifications
| Constant flow range | 200 - 2000 mL/min |
| Constant pressure flow range | 1 - 2000 mL/min optional constant pressure multi tube sampling device |
| Constant flow rate error | < + 5% of the set flow rate |
| Load capacity | Maximum load 35kPa, typical 35 kPa @ 500 mL/min |
| Storage | 999 sets, recording each sampling information for easy traceability |
| Battery pack | Rechargeable battery pack, fully charged within 3 hours, with overcharge and discharge function |
| Run time | 20 hours (typical 500 mL/min @ 4.5 Kpa) |
| Measurement display | Real time flow (Flow), Sampling time (RT), Sampling volume (VT), Back pressure (BP), Temperature (T), Error time (FT)Estimated stop time (ET), Operating mode, Power Date, Time, Data file |
| Operating mode | Manual, Constant volume, Timing, Sampling programming, Flow setting,Specified start time, Delay time, Sampling cycletime, Pause time, and number of cycles |
| Sampling calculation | Average sampling flow rate, Sampling volume, STP standard volume |
| Flow calibration | Digital calibration, Automatic load resistance calibration memory function |
| LED indicator light | Green and red lights, Fast and slow flashing, lndicating normal operation,lncorrect flow rate, Charqing status, Etc |
| Specification |
| ATEX | Intrinsically safe explosion-proof |
| Protection grade | IP65 |
| Language | Chinese, English optional |
| Display screen | Touch color display screen |
| Control keys | 1 physical Home key, Touch screen button |
| Work noise | ＜48.1 dBA |
| Work environment | Temperature -10~50C, humidity 0~95% non condensing |
| Tolerance | - Vibrate 4Hz@30m/s，2h
- lmpact 500 m/s@ (11+1) ms (GB/T 2423.5-1995)
- Drop 1m (GBT 2423.8-1995)
|
| Size | 100 × 97 × 50 mm |
| Weight | 457 g |

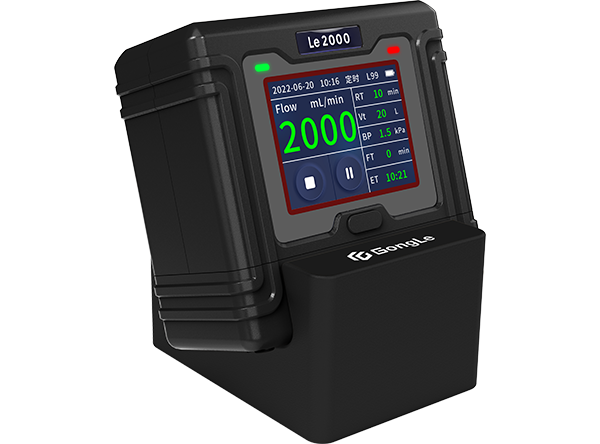

| Base adapter | - Single unit group, Three unit group, Five unit group
- Charging and connection interface, LED indicator light
- Input voltage: 220 VAC / 50 Hz
|
Our company's policy is to continuously innovate and develop our products.
Therefore, we reserve the right to change product specifications without prior notice.
