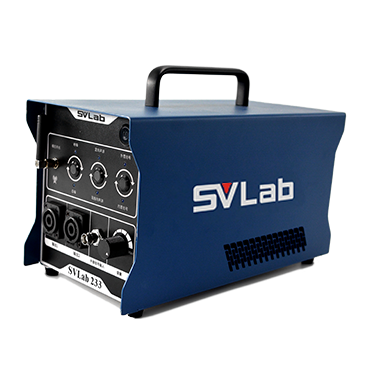

SVLab 233

Industrial quality control

Audio Power Amplifier

Product name: Power amplifier

Product model: SVLab 233

Manufacturer brand: SVLab

The SVLab 233 audio power amplifier is a professional equipment specifically used for measuring building sound insulation, material sound insulation, and exterior wall sound insulation.

The SVLab 233 power amplifier is equipped with built-in white noise and pink noise generators, and supports external sound source input. In addition, it can also receive dual channel outputs from two undirected sound sources simultaneously.

Our power amplifier is also equipped with a distance wireless remote control, which can be used for wireless control across multiple floors in the sound insulation measurement laboratory.

Standards

  • GB/T 19889 Acoustics - Measurement of Sound Insulation in Buildings and Building Components
  • GB 50118 Code for Design of Sound Insulation in Civil Building
  • GB 50121 Standard for assessment of building sound insulation


Functional Characteristics

Dual Channel Output

The SVLab 233 audio power amplifier has dual channel output and can simultaneously connect two undirected sound sources for measurement.

Wireless Remote Control

Our power amplifier adopts a 433 MHz remote control, which has strong wall piercing ability and can remotely control up to 200 meters in a free field.

Internal and external sound source input

There are two ways to input sound sources, internal and external, to meet various scenarios.

Lightweight Housing

The excellent structural design not only ensures the equipment is sturdy and reliable, but also achieves lightweight, convenient transportation and portability.

Application Scenario

Architectural Acoustics Measurement

Measurement of sound insulation and absorption coefficient

Measurement of reverberation time

Technical Specifications

Frequency range20 ~ 20000 Hz
Frequency response± 1 dB（50 ~ 20000 Hz）
Maximum power360 W
Total distortion＜ 0.2 %
Signal-to-noise ratio115 dB
PassagewayDual channel
Built-in sound sourcePink noise/White noise
Sound source output interfaceSpeakon connector
Sound source switchingUndirected sound source/Directional sound source
External sound sourceSupport for external sound source input
Remote control functionSound source on/off
Power supply method220 VAC
External power supplyCan be used with outdoor power supply
Security protectionOverload, Overcurrent, Overheating, Short circuit protection
Working temperature-10 to 50 ℃
Working humidity≤ 90% RH (non condensing)
Dimensional requirements300 × 170 × 145 mm
Weight约 3 kg

Our company's policy is to continuously innovate and develop our products.

Therefore, we reserve the right to change product specifications without prior notice.
